The IMS-4310E Dual Relay Output Module allows you to control two devices from any IMS-4000E Host or Node. Each output may be controlled either manually or automatically. Each output has the option of providing either a dry relay contact or 12VDC power. Two switches located inside the device select the output type.

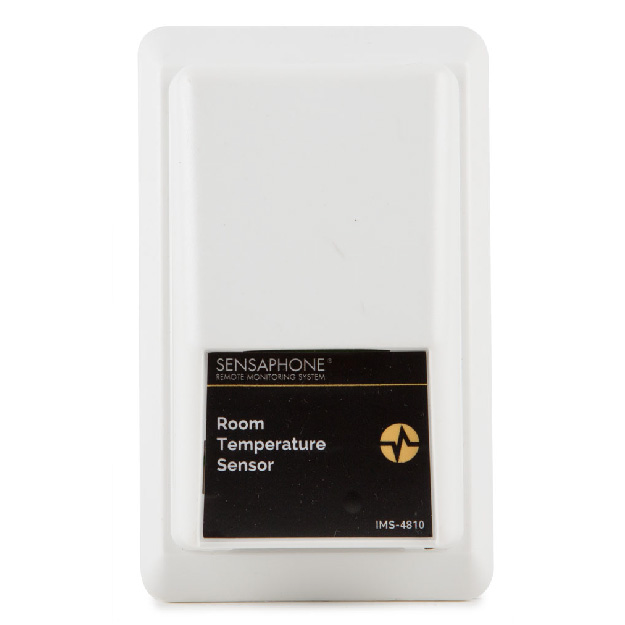

The IMS-4810E temperature sensor is designed to connect to the Sensaphone IMS
series product line and monitor indoor temperatures. The sensor may be mounted either on a wall or to a single-gang electrical box.
IMS-4811E Room Temperature Sensor (�F) w/LCD Readout
The IMS-4811E temperature sensor is designed to connect to the Sensaphone IMS
series product line and monitor indoor temperatures. The sensor may be mounted either on a wall or to a single-gang electrical box.

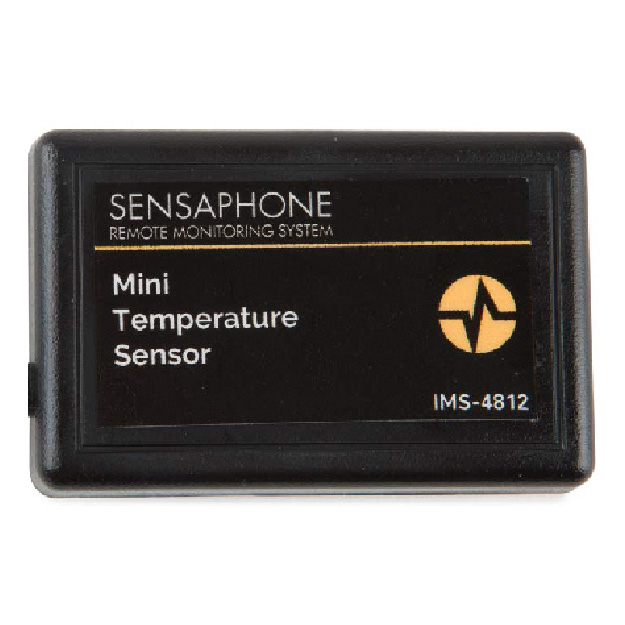

The IMS-4812E Mini Temperature Sensor is designed to connect to the Sensaphone IMS
series product line and monitor temperatures in tight locations (for
example, inside equipment racks). The sensor may be secured inside equipment using double-sided tape (included) or with tie-wraps.

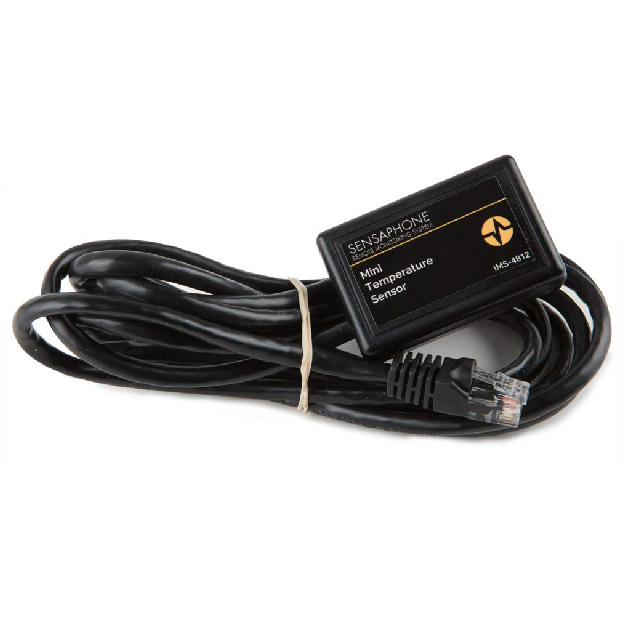

The IMS-4812E-C Mini Temperature Sensor is designed to connect to the Sensaphone IMS
series product line and monitor temperatures in tight locations (for
example, inside equipment racks). The sensor may be secured inside equipment using double-sided tape (included) or with tie-wraps.

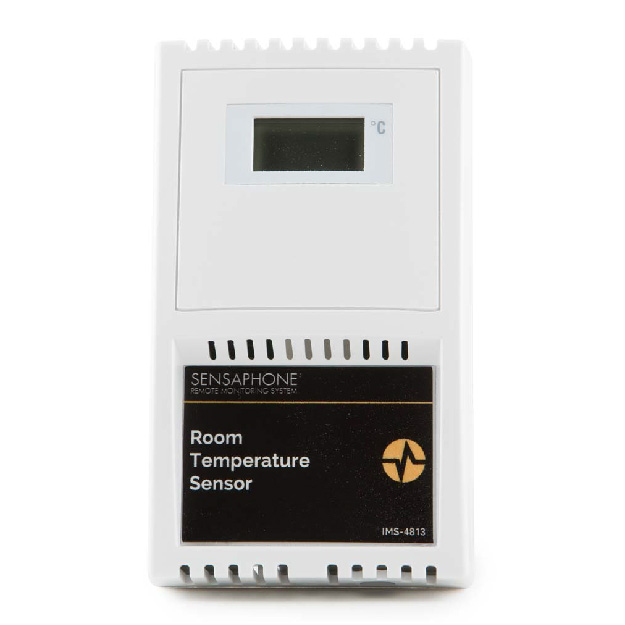

IMS-4813E Room Temperature Sensor (�C) w/LCD Readout
The IMS-4813E temperature sensor is designed to connect to the Sensaphone IMS
series product line and monitor indoor temperatures. The sensor may be mounted either on a wall or to a single-gang electrical box.

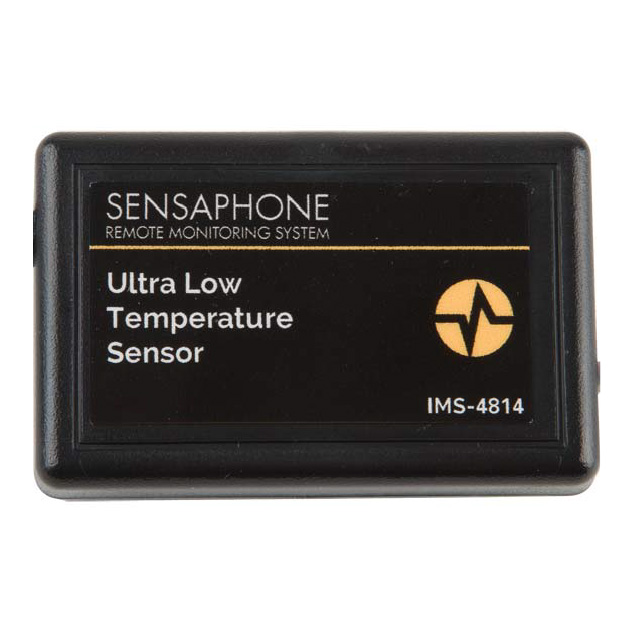

The IMS-4814E Ultra Low Temperature Sensor is designed to connect to the Sensaphone IMS
product line and monitor temperatures in refrigerators or freezers. The sensor probe may be secured inside equipment using the included clamp or it may be hung using tie wraps. Do not install the black plastic enclosure inside of a refrigerator or freezer. It is available with an optional NIST temperature certification.

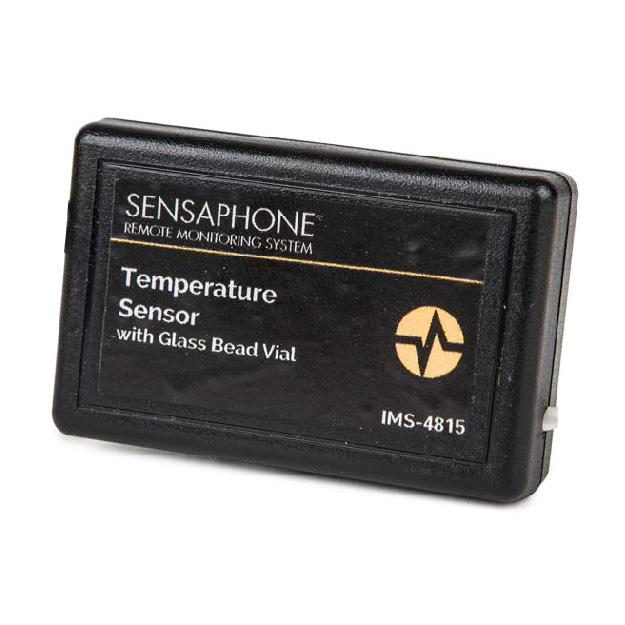

The IMS-4815E Temperature Sensor is designed to connect to the Sensaphone IMS series product line. The glass bead filled vial will buffer any momentary fluctuations that may cause a preliminary alarm such as defrost cycles, opening of doors and fans circulating air. The glass beads will slow the response time of the sensor allowing normal daily operations to occur without having an alarm initiated. This is a highly recommended sensor for every cold storage application.

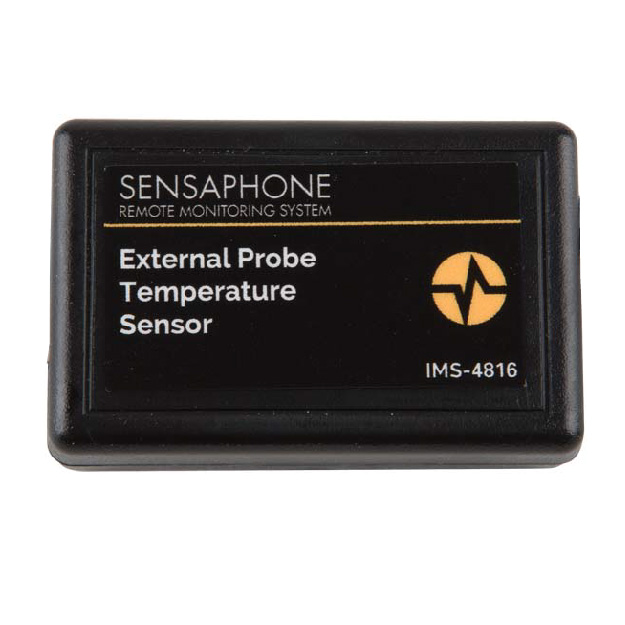

The IMS-4816E Temperature Sensor with External Probe is designed to connect to the Sensaphone IMS
product line and monitor temperatures in areas where a traditional
sensor won't fit. The sensor probe may be secured inside equipment using the included clamp or it may be hung using tie wraps. Do not install the black plastic enclosure inside of a refrigerator or freezer.

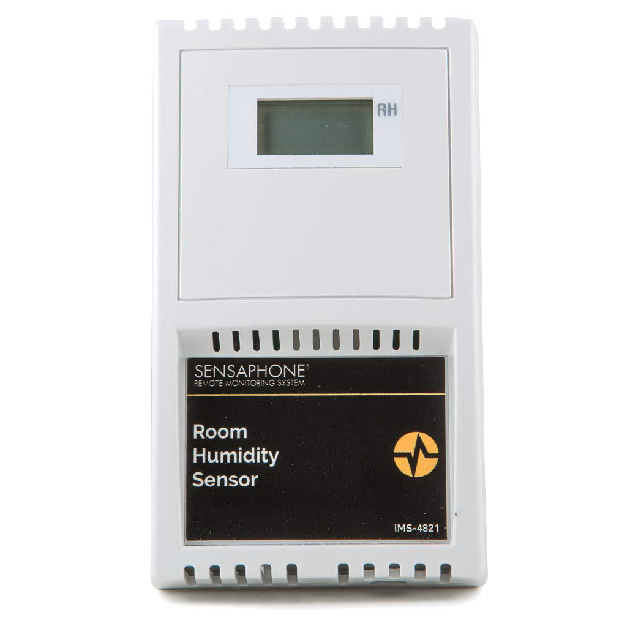

The IMS-4821E humidity sensor is designed to connect to the Sensaphone IMS
series product line and monitor indoor humidity. The sensor may be mounted either on a wall or to a single-gang electrical box.

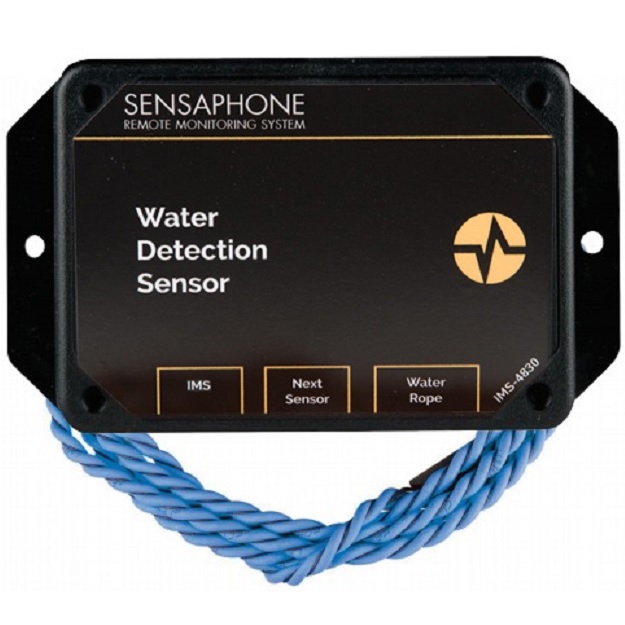

The IMS-4830E Water Detection Sensor protects your server and equipment from damaging water leaks from malfunctioning HVAC systems, cafeteria accidents, or any general plumbing failures in your facilities. The IMS-4830E is powered directly by the IMS unit.
After mounting the sensor, attach the included 10′ of WaterRope, and simply lay its orange cable around your equipment: place it on the floor or beneath a raised floor; inside a dropceiling or in the rafters between floors; or anywhere you must know about water near your equipment.
You can attach additional Water Detection sensors to each other to expand your water leak detection capabilities throughout your facility; alternatively, IMS WaterRopes are designed to plug into each other to widen your perimeter for any individual sensor.

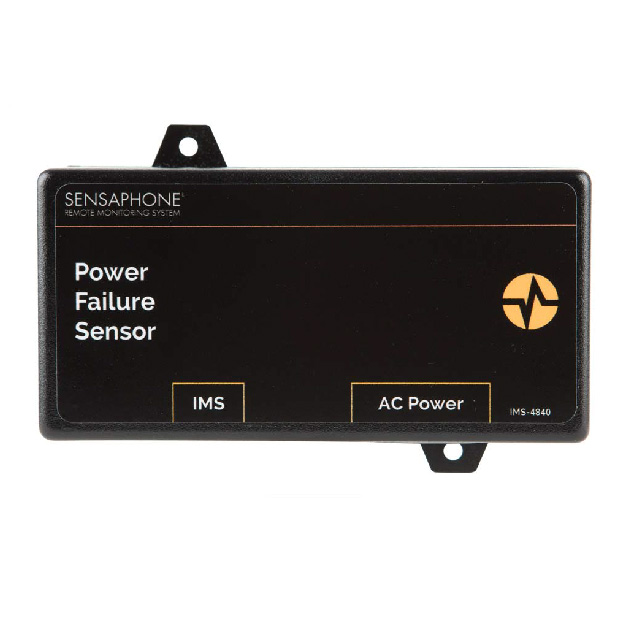

The IMS-4840E External Power Sensor lets you monitor power anywhere within your infrastructure. It reports any loss of power and measures the current voltage in the circuit, allowing you to know the status of each server rack and even of your remote UPS. Any failed generator starts are reported to you immediately. The IMS-4840E can monitor voltage from 0-250VAC 50/60Hz.

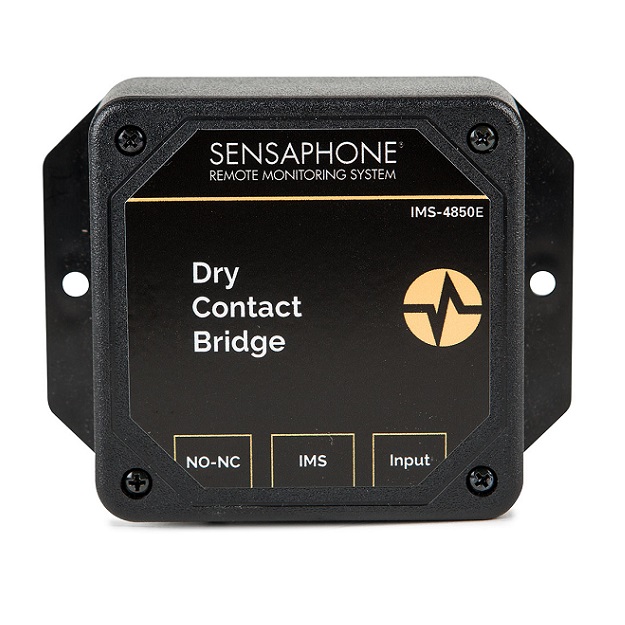

The IMS-4850E Dry Contact Bridge allows you to connect a dry contact alarm from any device to your IMS. The Dry Contact Bridge is compatible with Normally Open and Normally Closed contacts. The electrical connection between the sensor and IMS is made via RJ-45 patch cable (not included). The sensor may be mounted either on a wall or rest on the floor.
The 4-20mA Bridge allows you to connect a 4-20mA transducer to your Sensaphone IMS unit. The 4-20mA Bridge features optical isolation between the input and the IMS unit, which ensures troublefree operation and safety. The electrical connection between the bridge and IMS is made via RJ-45 patch cable (not included). The bridge may be mounted either on a wall or rest on the floor.
The IMS-4860E Door Switch with bridge enables your IMS unit to detect if any unauthorized entry or intrusion has occurred. The bridge may be mounted either on a wall or rest on the floor. The switch is mounted to doors or windows you wish to monitor.
The IMS-4861E Passive Infrared Detection Sensor is a dual-element passive infrared intrusion detector for use in electronic security systems. It reduces FALSE alarms by eliminating background noises and nuisance stimuli. The IMS-4861E employs variable pulse-count adjustment, thus making it adaptable for use both inside and outside of server/equipment rooms.

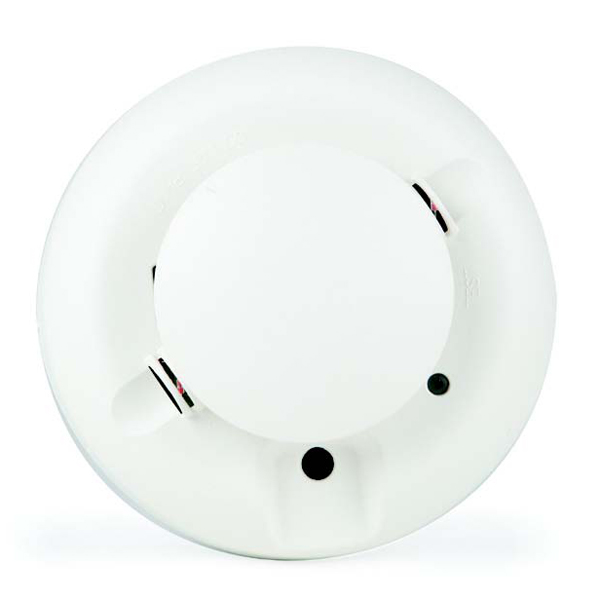

The IMS-4862E Smoke Detector Sensor is designed to connect to the IMS Host or Node and monitor for smoke in indoor environments. The electrical connection between the sensor and IMS is made via the attached RJ-45 patch cable. The sensor may be secured to a wall or ceiling (hardware not included).

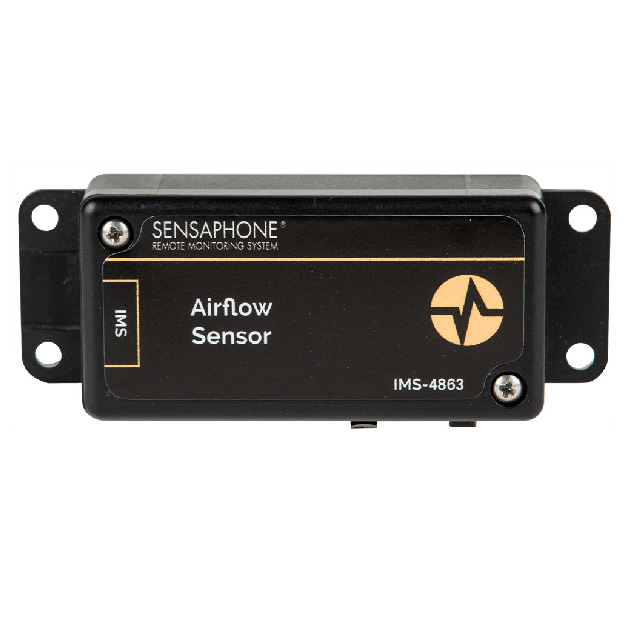

The Airflow sensor is designed to monitor for the presence or absence of cool moving air. This is especially useful for monitoring air conditioning systems. The sensor can provide relative air flow as a percentage from 0 to 100. The sensor is compatible with both the IMS-1000E and IMS-4000E devices.
