Accessories
IMS Accessories
|
FGD-0006 Magnetic Reed
Switch |
|
 |
The magnetic reed switch may be used with all Sensaphone models to detect any unauthorized entry or intrusion. They are usually installed on doors and windows to detect their opening and closing. Several magnetic reed switches may be wired in series.
FGD-0006 Magnetic Reed
Switch Datasheet |
|
|
|
|
FGD-0013 Spot Water
Detector |
 |
Sensor Detects the presence of water on the
floor. Comes with 25 feet of wire.
FGD-0013 Spot Water
Detector Datasheet |
|
|
|
|

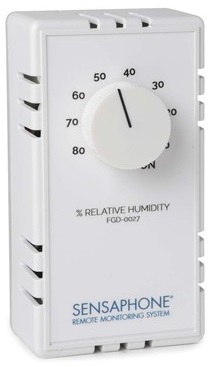

FGD-0027 Humidistat |
 |
The Humidistat can be used with all
Sensaphone models to detect a high or low humidity level. The device
will cause your Sensaphone to activate an alarm when the humidity level
reaches a set threshold. Made from high impact plastic with a brushed
goldtone dial plate and a beige cover. A nylon sensing element provides
long life and accurate humidity control. With a range of 10% to 60% RH
level, the sensor causes an alarm when the humidity exceeds or falls
below the set limit. Multiple sensors may be wired to a single input.
FGD-0027 Humidistat Datasheet |
| |
|

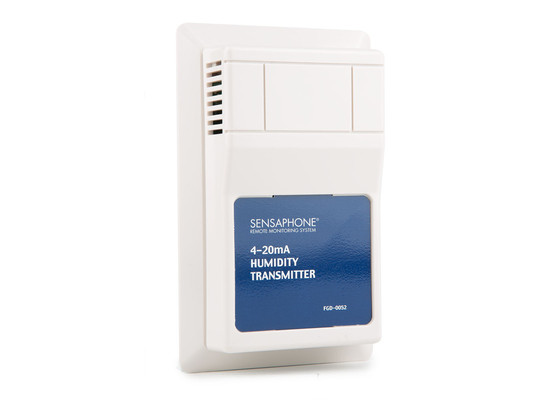

| FGD-0052 4-20mA Type Humidity Sensor |
 |
This sensor is a space mount, low profile humidity transducer that transmits actual humidity levels to a Sensaphone for programmable high and low alarm limits. The device can be used with any Sensaphone that supports 4-20mA inputs. The 24V DC power supply is required unless used with the SCADA 3000.
FGD-0052 4-20mA Type Humidity Sensor Datasheet |
|
|
|
FGD-0056 Zone Water
Detector |
 |
For use in detecting the presence of water
on a floor or in a false ceiling. Comes with 10’ of WaterRope cable to
cover a larger area than the FGD-0013 water sensor. Up to three
WaterRopes can be cascaded from a single sensor for even greater
coverage. Comes with 25 feet of wire.
FGD-0056 Zone Water
Detector Datasheet |
| |
|
| FGD-0065 4-20mA Type Carbon Monoxide Sensor |
 |
Carbon Monoxide is a highly toxic gas that has no color or odor. The Sensaphone Carbon Monoxide sensor will allow you to monitor CO levels from 0-300 ppm with any Sensaphone that will accept a 4-20mA input signal. The 1” x .5” LCD displays the PPM and menu parameters. The sensor will require a 24VDC power supply to operate.
FGD-0065 4-20mA Type Carbon Monoxide Sensor Datasheet |
| |
|

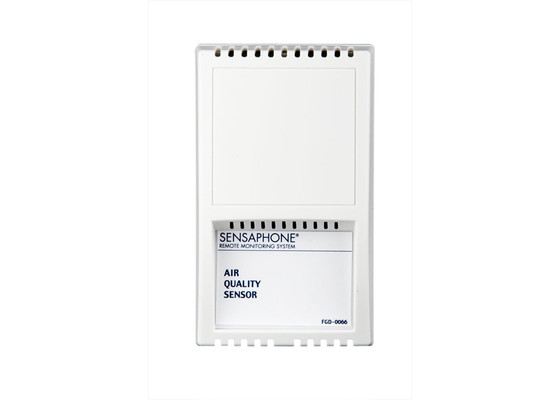

| FGD-0066 4-20mA Type Air Quality Sensor |
 |
The Sensaphone Indoor Air Quality sensor will monitor levels of pollution from 0–100% with any Sensaphone that will accept a 4-20mA signal. Popular applications include schoolrooms, office buildings, and parking garages. Air contaminants can include cigarette smoke, cooking exhaust, automobile exhaust, solvents and many others. The sensor will require a 24VDC power supply to operate.
FGD-0066 4-20mA Type Air Quality Sensor Datasheet |
| |
|

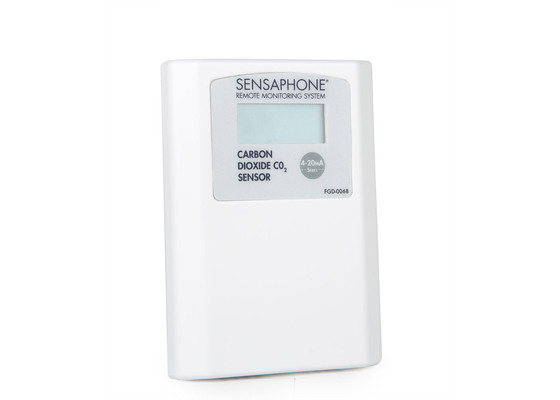

| FGD-0068 4-20mA Type Carbon Dioxide (CO2) Sensor |
 |
The Sensaphone Carbon Dioxide sensor will monitor levels of Carbon Dioxide from 0-2,000ppm with any Sensaphone that will accept a 4-20mA input signal. The sensor will need a 24VDC power supply to operate.
FGD-0068 4-20mA Type Carbon Dioxide (CO2) Sensor Datasheet |
|
|
|
|
FGD-0085 Power Out Sensor |
 |
The Sensaphone FGD-0085 Power Out Sensor is a compact power outage monitoring device to detect power failures. Easily plugs into any 100-240V AC receptacle outlet for operation. Comes with 1 meter of wire with dual relay output.
FGD-0085 Power Out Sensor Datasheet |
|
|
|
|
FGD-0088 Remote
Annunciator |
 |
The Sensaphone FGD-0088 Remote Annunciator
is a 12-24 Volt 90 decibel alarm buzzer in an enclosure. It can be used
in conjunction with many other devices as a local alarm or as a remote
alarm. This provides flexible monitoring via audible and visual alert
whenever an alarm exists.
FGD-0088 Remote
Annunciator Datasheet |
|
|
|
|
FGD-0100 2.8K Remote Temperature
Sensor |
 |
Designed to monitor air temperature in a
clean, indoor, environment. Sensing range depends on product. Does not
come with wire.
FGD-0100 2.8K
Remote Temperature Sensor Datasheet |
|
|
|
|
FGD-0101 2.8K Weatherproof
Temperature Sensor |
 |
Small, sealed, general purpose temperature
probe for indoor or outdoor use. Sensing range depends on product. Comes
with 12 feet of wire. 2.8K
FGD-0101 2.8K
Weatherproof Temperature Sensor Datasheet |
| |
|
| FGD-0101-TEF 2.8K Type Ultra Low Temperature Sensor |
 |
The 2.8K Ultra Low Temperature sensor enables monitoring temperatures at a location away from a Sensaphone unit. The sensor's wire will withstand temperatures down to -85°C. It will measure and report the exact temperature back to the Sensaphone unit to which it is attached. The Sensaphone can be programmed to trigger an alarm when conditions exceed the set high or low temperature limits. It may be mounted anywhere air temperatures need to be measured and is suitable for use in wet, dirty environments.
FGD-0101-TEF 2.8K Type Ultra Low Temperature Sensor Datasheet |
|
|
|
|
FGD-0102 10K Weatherproof
Temperature Sensor |
 |
Small, sealed, general purpose temperature
probe for indoor or outdoor use. Sensing range depends on product. Comes
with 12 feet of wire. 10K
FGD-0102 10K Weatherproof
Temperature Sensor Datasheet |
| |
|

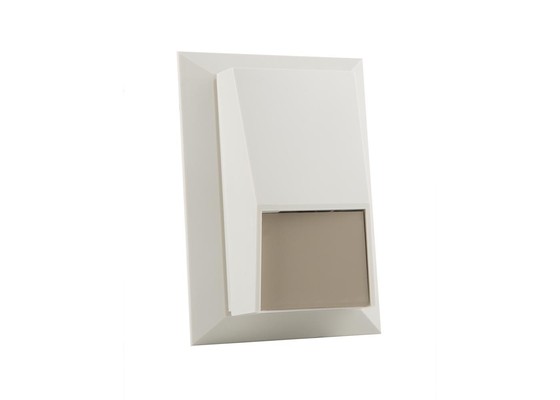

| FGD-0103 10K Type Indoor Decorator Zone Temperature Sensor |
 |
The 10K indoor decorator zone temperature sensor offers precision room temperature sensing in an attractive wall–mounted enclosure. Accurate to 0.36°F (0.2°C) with a sensing range of 35° to 140°F. The indoor decorator comes in a beige plastic enclosure, with a tan metal face plate. The sensor is designed to be wall–mounted indoors where appearance is important.
FGD-0103 10K Type Indoor Decorator Zone Temperature Sensor Datasheet |
| |
|

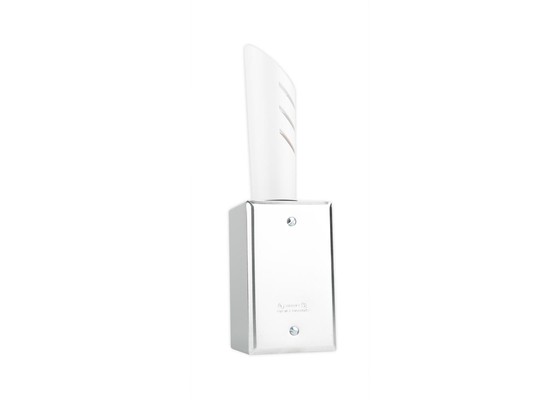

| FGD-0104 10K Type Outdoor Air Temperature Sensor |
 |
The 10K Outdoor Air Weatherproof Temperature sensor is a sensitive temperature element in a stainless steel tube sheathe. It is mounted inside a ventilated, treated weather–resistant PVC shield to minimize radiant energy effects and mounted on a weatherproof outlet box for easy outdoor installation. Accurate to ± 0.36°F (0.2°C) with a sensing range of -30° to 140°F | -34° to 60°C. 8’ of 24AWG wire included.
FGD-0104 10K Type Outdoor Air Temperature Sensor Datasheet |
| |
|

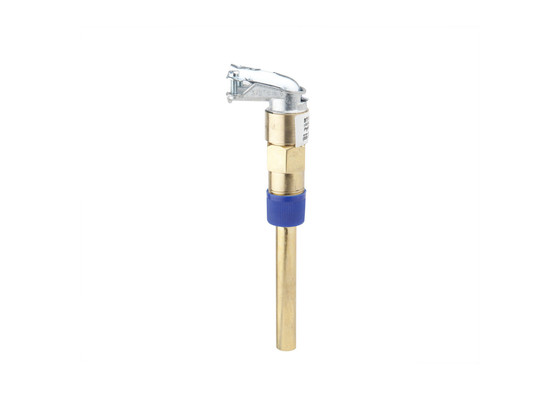

| FGD-0105 10K Type Immersion Temperature Sensor |
 |
The 10K Immersion temperature sensor measures the temperature of fluids inside a pipe. It’s constructed of brass WEL-B thermowell (which screws into a customer-supplied 0.5” NPT saddle or Thredolet® fitting in a pipe). It fits into a thermowell via a brass 0.125” NPT fitting.
FGD-0105 10K Type Immersion Temperature Sensor Datasheet |
|
|
|
|
FGD-0107 2.8K Temperature
Sensor with Glass Bead Vial |
 |
The FGD-0107 is ideal for cold storage
temperature monitoring. The glass bead filled vial will buffer any
momentary fluctuations that may cause a preliminary alarm dial out, such
as defrost cycles, opening of doors, and fans circulating air. The glass
beads will slow the response time of the sensor allowing normal daily
operations to occur without having an alarm initiated. This is a highly
recommended sensor for every cold storage application.
FGD-0107 2.8K Temperature
Sensor with Glass Bead Vial Datasheet |
|
|
|
|

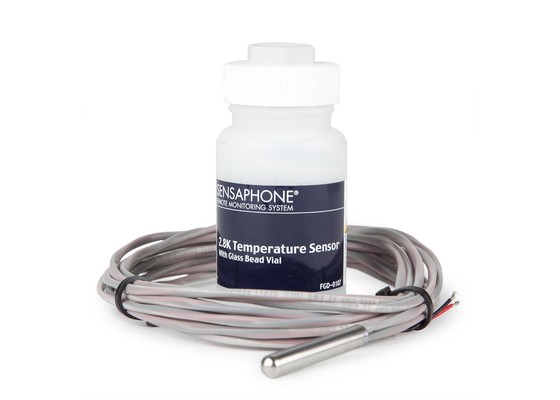

FGD-0107-TEF 2.8K Ultra
Low Temperature Sensor with Glass Bead Vial |
 |
The FGD-0107-TEF is ideal for cold storage temperature monitoring where temperatures are consistently under -28°C. The glass bead filled vial will buffer any momentary fluctuations that may cause a preliminary alarm dial out, such as defrost cycles, opening of doors, and fans circulating air. The glass beads will slow the response time of the sensor allowing normal daily operations to occur without having an alarm initiated.
FGD-0107-TEF 2.8K Ultra
Low Temperature
Sensor with Glass Bead Vial Datasheet |
|
|
|
|
FGD-0108 Dual Sensor (Dry
Contact Output) |
 |
The Sensaphone FGD-0108 Dual Sensor is a
compact and user friendly temperature and humidity sensor. It measures
and displays both ambient temperature and relative humidity at the same
time. All configuration is stored in the system’s non-volatile memory.
Two Normally Open (NO) solid state outputs are available.
FGD-0108 Dual Sensor (Dry
Contact Output) Datasheet |
|
FGD-0108 Dual Sensor (Dry
Contact Output) Installation Guide |
|
|
|
|
FGD-0109 Dual Sensor
(4-20mA Output) |
 |
The Sensaphone FGD-0109 Dual Sensor is a
compact and user friendly temperature and humidity sensor. It measures
and displays both ambient temperature and relative humidity at the same
time. Two 4-20mA analog outputs are available.
FGD-0109 Dual Sensor
(4-20mA Output) Datasheet |
|
FGD-0109 Dual Sensor
(4-20mA Output) Installation Guide |
| |
|
| FGD-0120 2.8K Type Temperature Sensor Display |
 |
The Local Temperature Display can be used with all Sensaphone 2.8k type temperature sensors. This provides an at-a-glance reading of the current temperature as well as the programmed minimum and maximum temperatures. The display is ideal for any location where onsite staff need a quick, convenient visual reading of the sensor, saving them the time of checking the monitoring system's data.
FGD-0120 2.8K Type Temperature Sensor Display Datasheet |
| |
|
| FGD-0120-VFC VFC Refrigerator Temperature Sensor with Display |
 |
When paired with a Sentinel Monitoring System, this temperature sensor with display helps VFC participants comply with requirements to safely monitor their refrigerator. The min/max values and current temperature are displayed and an audible alarm alerts local staff when temperatures fall out of the programmed limits. Choose between a NIST certified temperature sensor in a glass bead vial or glycol bottle.
FGD-0120-VFC VFC Refrigerator Temperature Sensor with Display Datasheet |
| |
|

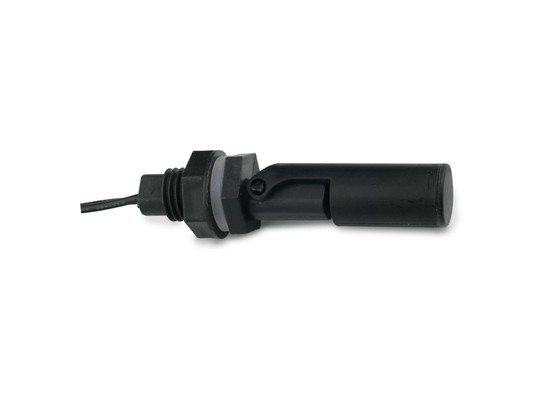

| FGD-0222 Contact Type Float Level Switch |
 |
The FGD-0222 float switch is a plastic side mounted float switch. It is cost effective for level control applications in small tanks where it is more convenient to install a level switch through the sidewall of the tank. This style float switch can be rotated for Normally Open or Normally Closed operation. Combine two switches at different levels for high and low level or pump control or alarming.
FGD-0222 Contact Type Float Level Switch Datasheet |
| |
|

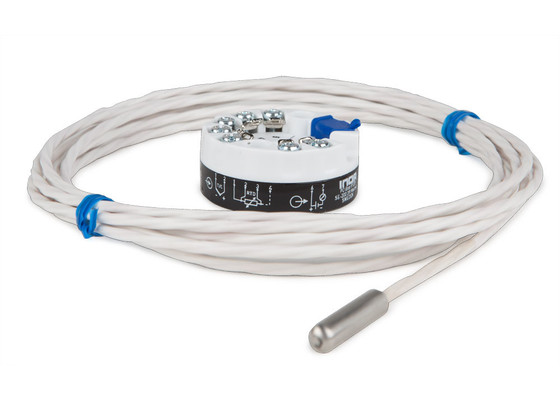

| FGD-0240 RTD Probe with 4-20mA Transmitter |
 |
The RTD probe with 4-20mA transmitter can be used to measure the temperature in extreme environments. Part number FGD-0240 is calibrated to operate over the range -200° to 35°C. Part number FGD-0240-SPEC can be customized at time of order to operate over any range between -200° and 204°C. The sensor will need a 24VDC power supply to operate.
FGD-0240 RTD Probe with 4-20mA Transmitter Datasheet |
| |
|

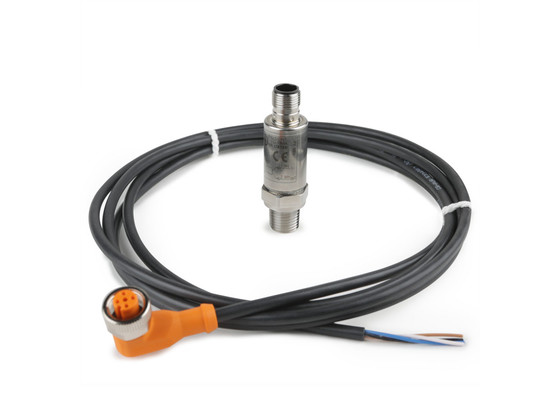

| FGD-0301 4-20mA Type Pressure Sensor |
 |
The Sensaphone Pressure Sensor can be used to measure and detect loss of pressure in many applications. An alarm from the pressure sensor can indicate a problem with a pump, a possible clogged influent line, loss of suction, a downstream clog or perhaps a burst pipe. Any of those failures can cause a pump motor to overheat and warp.
FGD-0301 4-20mA Type Pressure Sensor Datasheet |
|
|
|
FGD-0303 4-20mA Type Vibration Sensor |
 |
The electronic vibration sensor monitors the overall vibration condition of machines and equipment according to DIN ISO 10816. The sensor measures vibration velocity on a non-rotating component surface. The characteristic value is provided as a current signal (4-20 mA) for connection to the Sensaphone. The Sensaphone triggers an alarm when an out of limit value is exceeded. Requires a 24VDC power supply (FGD-0070).
FGD-0303 4-20mA Type Vibration Sensor Datasheet |
|
|
|
