Sensaphone designs and manufactures the most comprehensive line of
remote monitoring systems and liquid leakage detection systems to
safeguard your property. We are the leader in Remote Monitoring System
with 30 years in business and have more than 10 years of experience in
Liquid Leakage Detection System.
With over 300,000 installed systems worldwide, Sensaphone offers the
highest quality products available, the best product support, and the
best customer satisfaction record in the industry.
The Sensaphone Liquid Leakage Detection
solutions can instantly inform you when it detects liquid leak. This is
to ensure that the leakage in remote sites never turns into a disaster.
Web-based Status Monitoring and Programming
The Master Panel has a built-in Web Server allowing easy access to
Status and Programming through a Webpage. It provides quick and easy
access to information about your monitored conditions. Even time stamped
history reports are readily available online.
Free from False Alarm
The Liquid Sensing Cable is constructed with Conductive Polymer and
covered with Insulating Mesh to eliminate the chance of false alarms due
to short circuit with metal objects or dusty environment.
CE Approved
The Liquid Sensing Cable FGD-L8111 is CE approved. It is also compliance
with RoHS.

Multiple Language LCD Display
The Master Panel has the LCD Display either in English or Chinese
(Simplified or Traditional).
Easy to Install
The system was designed with a modular structure, which is easy to
install and maintain. You just need to plug the cables and other system
components together. It is also flexible for design changes and future
extension.
Data for Analysis
The Master Panel can log up to 4,000 entries of Leak and Cable Break
Alarm History. The Eventlog History can be exported to XML or HTML files
for data analysis.

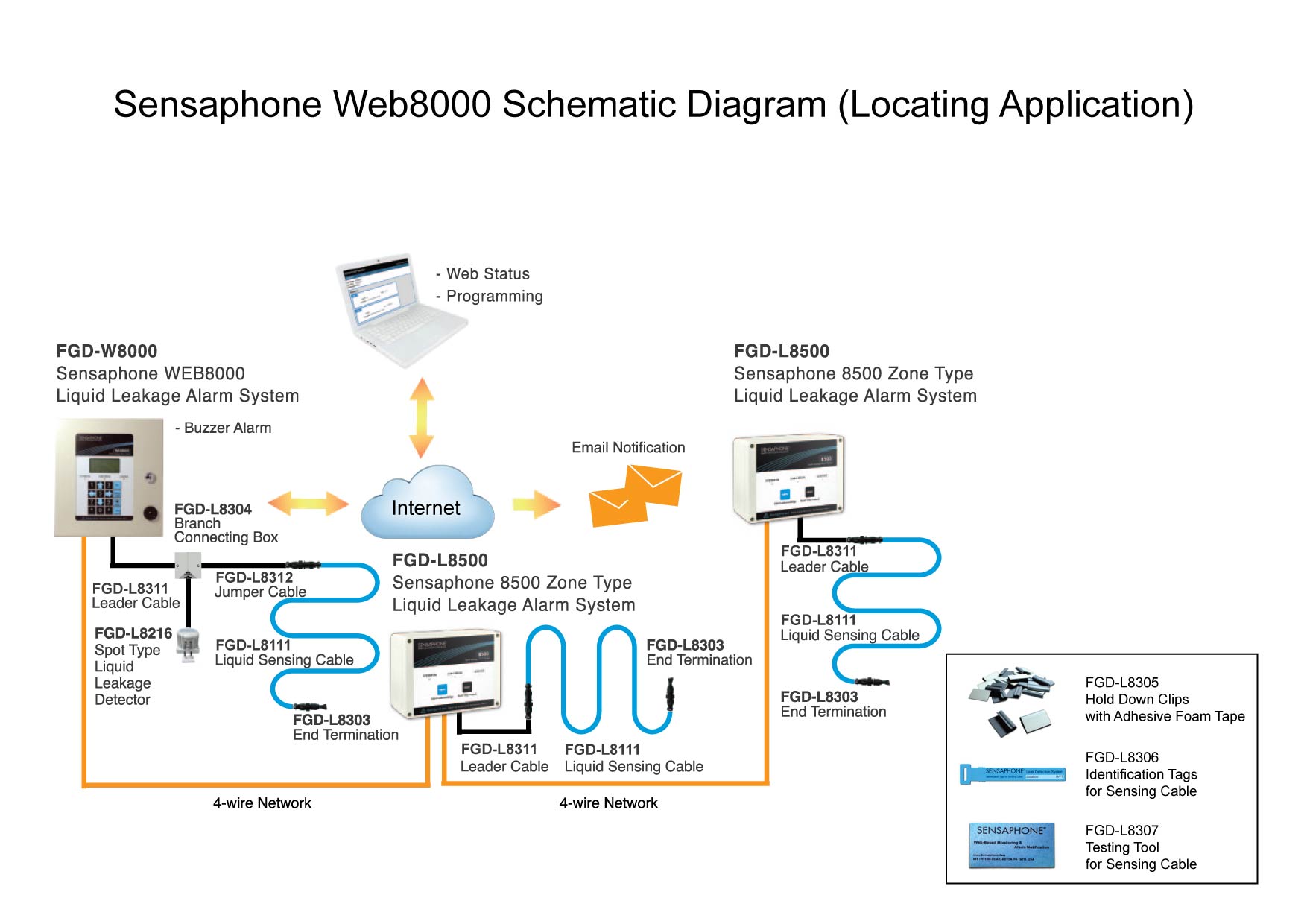

Sensaphone
Web8000 Schematic Diagram (Locating Application)
(Please click the image to enlarge)

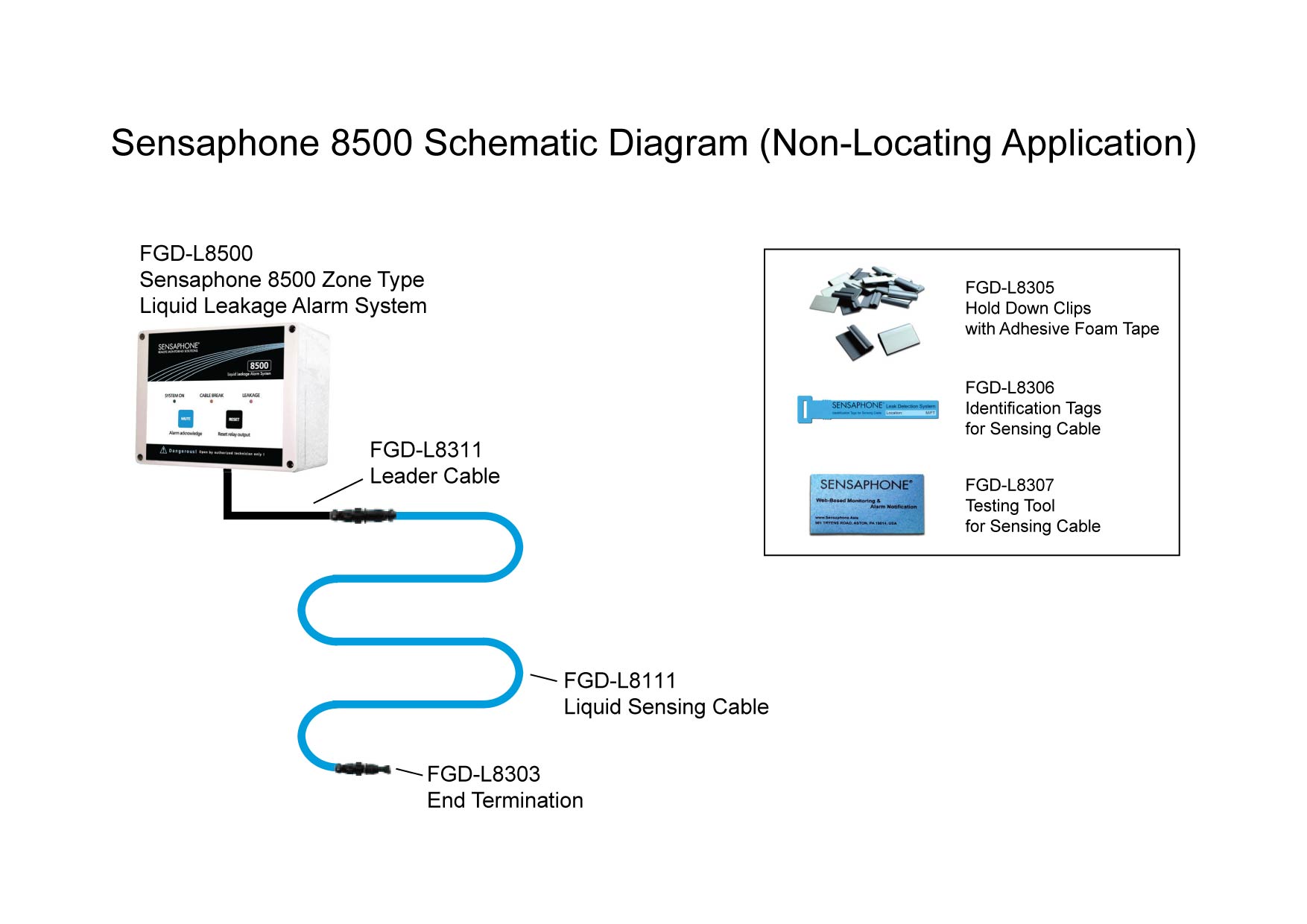

Sensaphone
8500 Schematic Diagram (Non-Locating Application-Sensing Cable)
(Please click the image to enlarge)

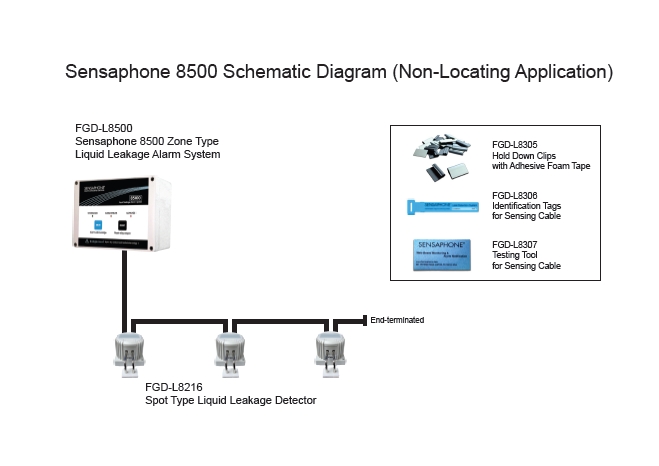

Sensaphone
8500 Schematic Diagram (Non-Locating Application-Spot Sensor)
(Please click the image to enlarge)
Liquid Leakage Alarm System
Sensaphone Web8000
Sensaphone 8500
Cable, Spot Type Sensors
