Products - Sensaphone IMS-4000E Data Center Monitoring






Product Catalog -----------

Sensaphone Product Catalog
Medical Cold Storage
Computer Room Application
--------------------------------
Liquid Leakage Alarm System
Sensaphone Web8000
Sensaphone 8500

Cable & Spot Type Sensors
System Components
--------------------------------
Stratus EMS
Sentinel
SentinelPRO
WSG30
SensaVideo
Web600
--------------------------------
Model 400
Model 800
--------------------------------
Model 1400
Model 1800
Express II
--------------------------------
IMS-1000E
IMS-4000E
IMS-4000 Wireless Node
IMS-4000E Dry Contact Node
--------------------------------
Accessories

IMS Accessories

 | Introduction | Features | Specifications | Videos & Applications | Downloads |

   Quick View
   Built-in Power failure, Sound level
   Inputs 8 per each host and node
   Outputs 0 (optional Powergate)
   Notification E-mail, SNMP trap, voice phone call, fax, text message, numeric pager
   Special Features Live webserver, rack mount, expandable, ethernet with phone backup, IP monitoring

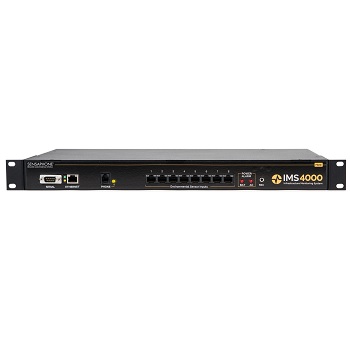

Whether you have a small room, or a large data center, the Sensaphone IMS-4000E System provides complete monitoring for your computer facility. It is designed to monitor your entire infrastructure, which includes the environment, the physical security, and the network operation.

The Sensaphone IMS-4000E system is a stand alone infrastructure monitoring system with an integrated voice and modem, an internal UPS, flash-disk storage, and a web server, in a simple-to-install 1U rackmountable package. From the wide array of its plug-and-play monitoring devices to its sophisticated software, the IMS-4000E is a complete, flexible, integrated system.

Environmental Monitoring
Monitor critical environmental conditions such as Temperature, Humidity, Smoke, Sound Level, Motion, Water, Intrusion, and Power Outages with the IMS-4000E Host and Node. Each Host and Node unit supports up to eight Environmental Sensors. When a sensor exceeds the threshold you configure— high temperature for example—you are notified by the IMS-4000E about the condition. Lights on the face of the IMS Host instantly reveal any outstanding problems. With sound level monitoring you can be notified if an audible alarm goes off, and you can remotely listen in, via the Host unit, to the server room to assess the situation yourself at any time.

IP Monitoring
The IMS-4000E monitors IP Devices through pinging and port availability. When a network component becomes unavailable, the IMS-4000E notifies you about which IP device is unavailable. You can monitor the status of network links, routers, printers and servers—any device which has an IP address. Each IMS-4000E Host and Node can monitor up to 64 devices. When a device does not respond to the IMS query, it contacts you immediately to alert you to the situation.

Notification
When a problem occurs in your network, the IMS-4000E will find you and notify you of the problem no matter where you are. Multiple communication interfaces— Ethernet port and standard telephone interface— guarantee that you get the message. You receive early notification before a problem turns into a disaster. The integrated modem / voice interface of the IMS-4000E Host means network events and environmental problems are sent to you in your own voice. When all you have is a phone, you will still know what’s going on in your network. You get the message fast.

Status
Curious about your network? You can always obtain status information about your infrastructure—anytime, anywhere. Call into the IMS-4000E using your computer’s standard dial-up networking. The IMS Console software operates the same remotely as it does locally for complete management and control of your IMS system. If you’re not near a computer, then just pick up any phone and call into the IMS-4000E: It will tell you in a real voice report the status of all conditions.

Sensaphone IMS-4000E Introduction

Sensaphone IMS-4000 Features


   Downloads
   IMS-4000E User Manual (2.98MB)
   IMS-4000E Sales Brochure (1.83MB)
   IMS-4000 Upgrade Instructions (515KB)
   IMS-4000 Firmware   (8.90MB)
   IMS-4000 ConsoleView   (20.7MB)
   IMS-4000 SNMP MIB   (49KB)
   IMS-4000 Powerpoint Presentation   (10.00MB)
